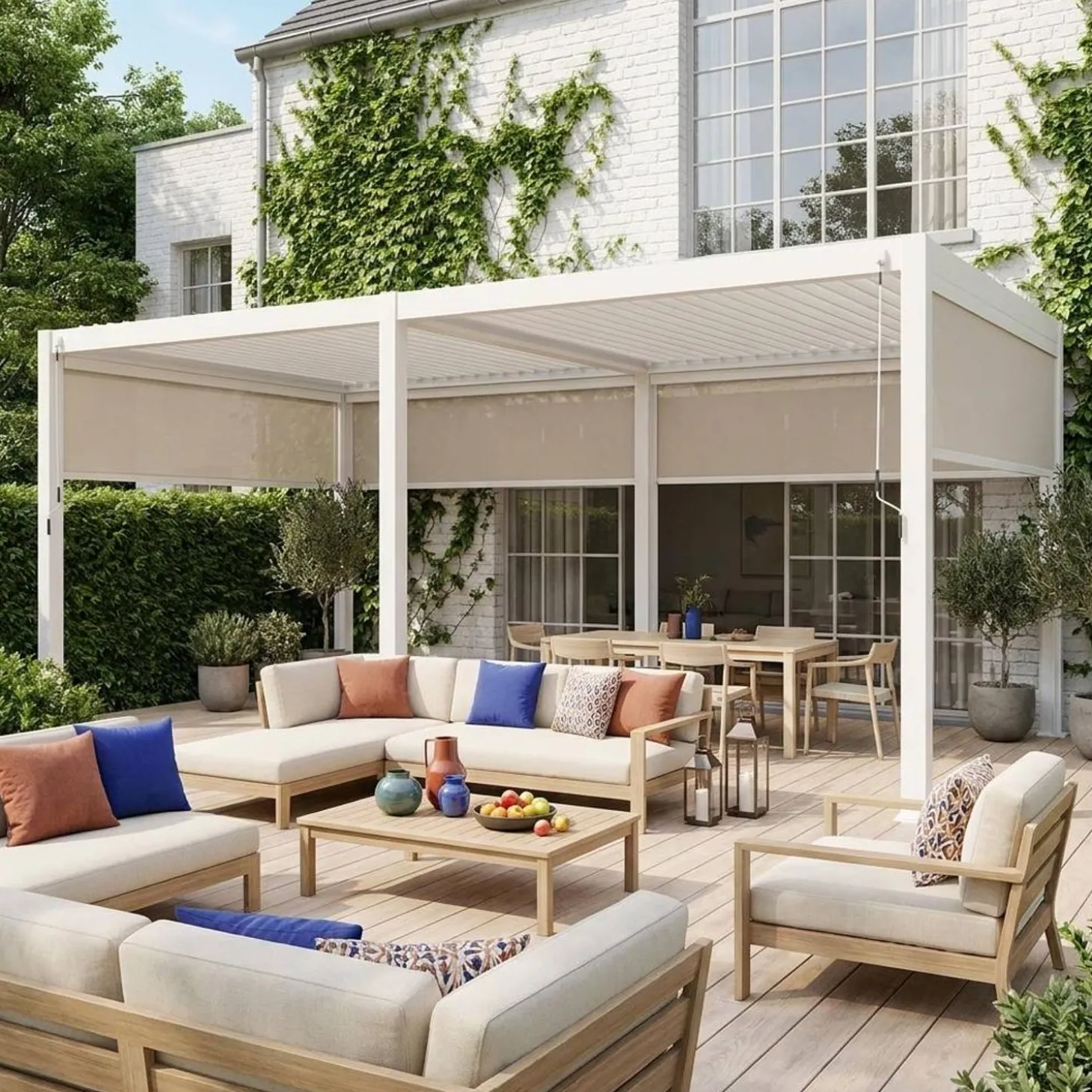

A bioclimatic pergola to enjoy your garden all year round

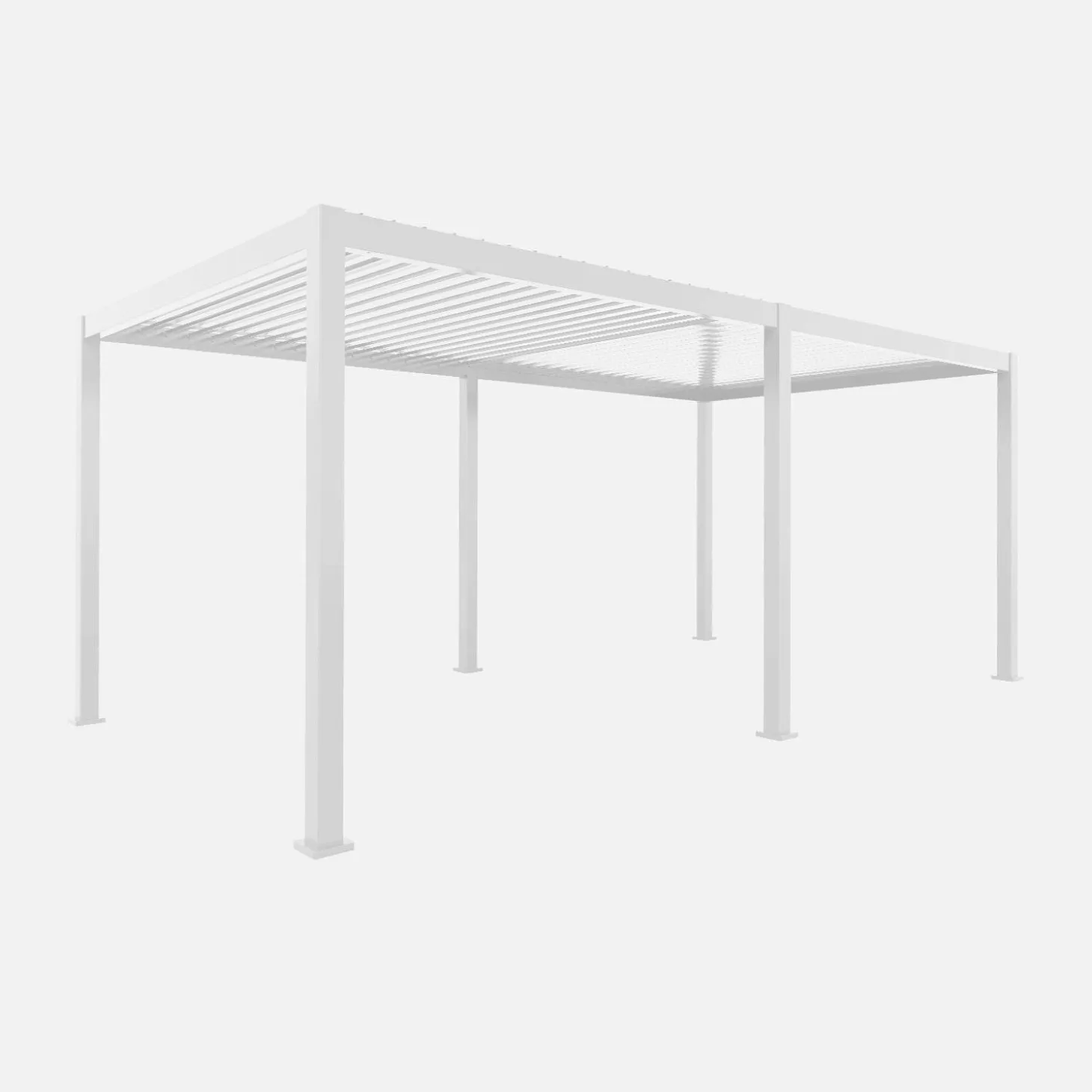

The bioclimatic pergola Triomphe 3 x 6 m allows you to enjoy pleasant and friendly moments in your garden without worrying about the weather. Unlike other pergolas, it has the unique ability to adapt to different weather conditions. In winter, it protects you from the rain or lets you enjoy the sun, and in summer, you can appreciate its shade and coolness. The pergola is fixed to the ground, making this system permanent. No more need to store your pergola every fall; you can enjoy it all year round.
A sustainable investment
With its elegant design, it brings a contemporary touch to your garden. Its dimensions allow you to easily install it on your terrace above a garden table or by the pool. It can also be used to shelter your spa.
Designed with a quality aluminium structure and galvanized steel slats, this pergola is a long-term investment. It is sturdy, UV-resistant, and requires very little maintenance.
Shade, sun, ventilation, you choose!

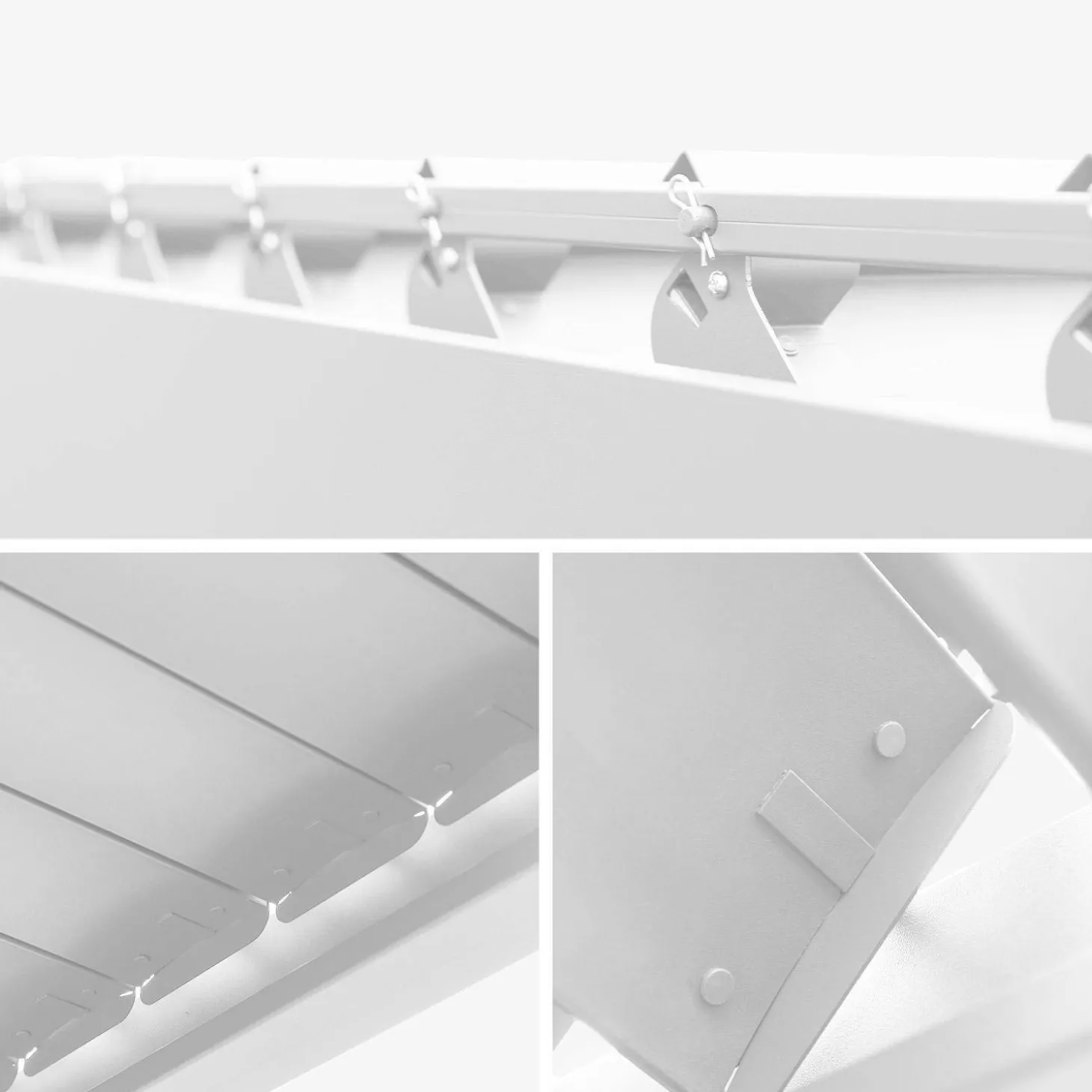

Its awning can be opened and closed thanks to its adjustable slats that are operated by a crank. When fully closed, it provides total protection against sun and rain thanks to its insulating slats and maximum shading. Its seals ensure perfect waterproofing. Water will be drained through the posts by an innovative integrated drainage system.
Its adjustable slats allow for natural ventilation, gently protecting you from sunlight. They also enable you to control the flow of sunlight. In partial opening: you will achieve significant ventilation while reducing direct sunlight. In full opening, you can enjoy the sun and optimal ventilation.

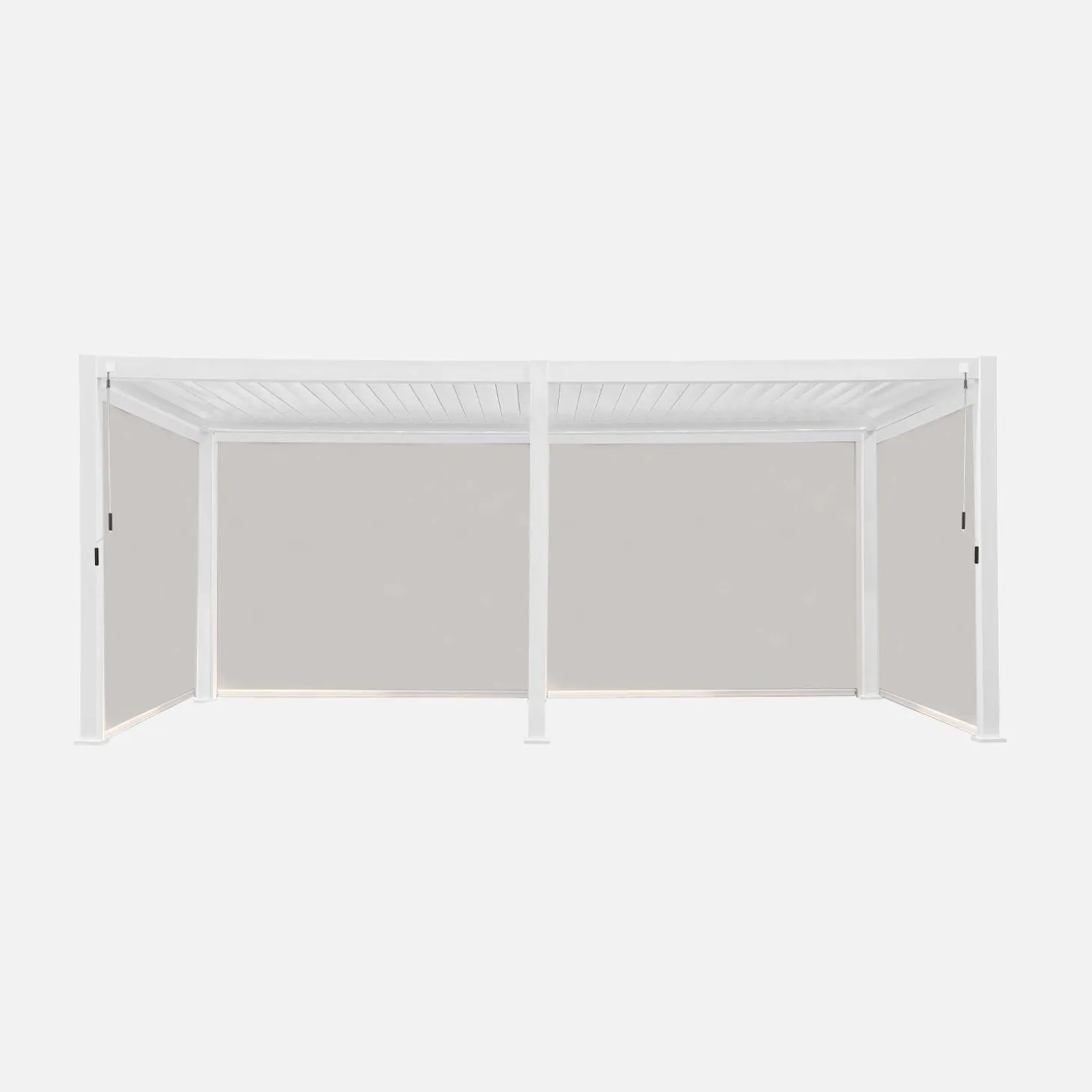

Blinds for more comfort

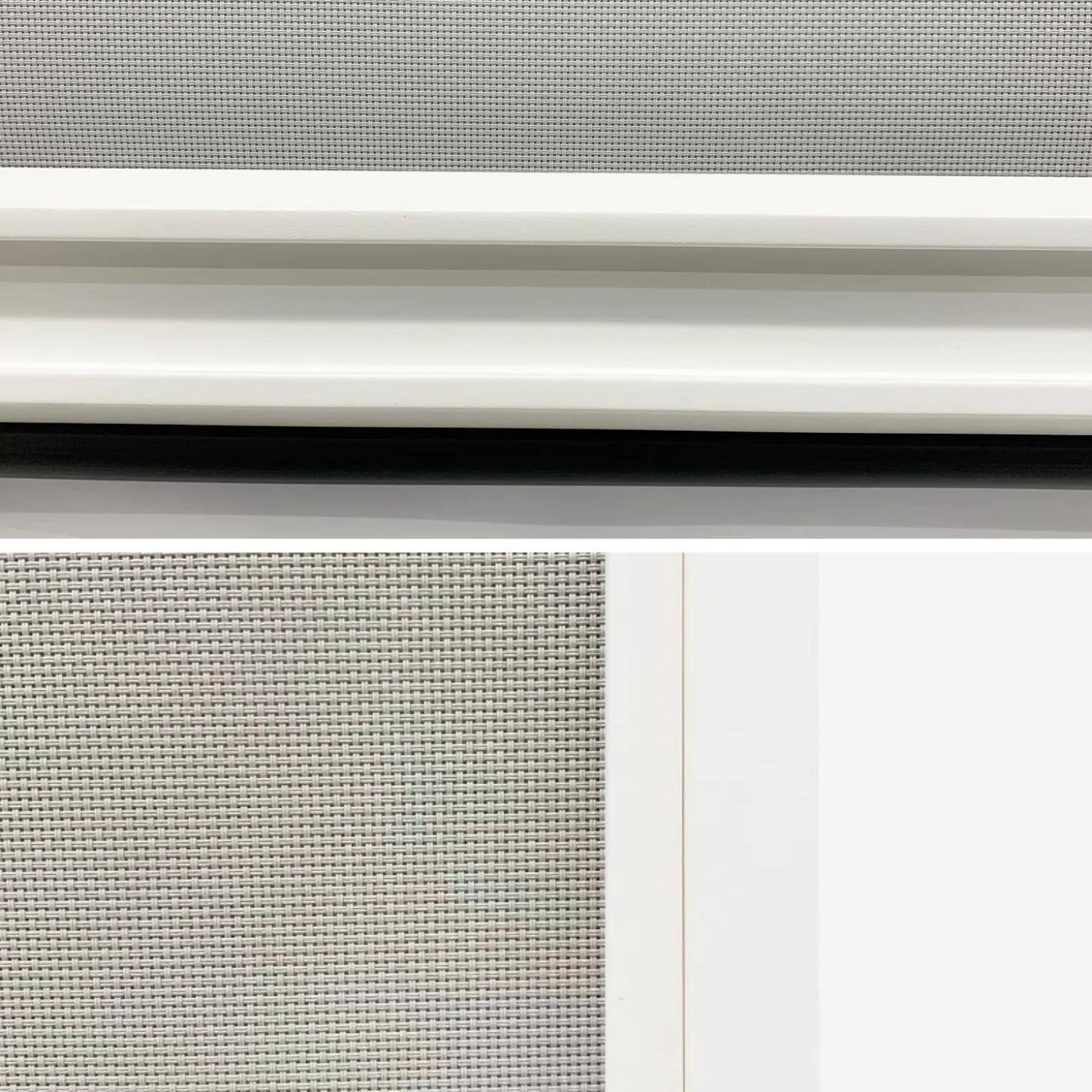

These blinds protect you from the sun and bad weather. They also shield you from prying eyes without being completely opaque. They are perfect for providing optimal comfort on your terrace and enjoying good times with family or friends. Easy to use, you simply need to manually lower the blinds to shelter yourself from the wind or rain. Their height can be adjusted according to your needs and is not predefined. Strong and durable, they are made with quality materials. The aluminium side panel and the textilene fabric provide you with effective resistance against UV rays and bad weather. For added safety, the blinds should be retracted in case of absence or high winds (over 50 km/h).
Additional information:
Although it offers protection against the rain, this pergola is not a completely waterproof shelter.
This pergola is to be installed on a level ground.
It is recommended to keep the slats open in case of snowfall.
Compare our bioclimatic pergolas
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 3: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 4: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 5: L 255 x l 37 x h 23.5 cm – 47.84 kg
Package 6: L 336 x l 41 x h 17 cm – 65.6 kg
Package 7: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 8: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 9: L 298.5 x l 40 x h 19 cm – 63 kg
Total sun protection: enjoy its coolness in summer.
Natural ventilation
Tilted slats to adjust the light flow
| Type | Louvered pergola |
| Motorised | No |
| Shape | Rectangular |
| Colour | White |
| Pantone code | 000C |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 6 m |
| Surface | 18 m² |
| Length | 3 m |
| Width | 6 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 17,8 m² |
| Floor area | 18 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,5 mm |
| Slat dimensions | L 294 x D 17 x H 3 cm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 38 |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 1195,2 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 4 blinds 3m Triomphe |
| Fabric material | Textilene |
| Density | 470 g/m² |
| Assembly time | 7h30 / 4 people |
| Number of packages | 9 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Blade materials | Galvanized steel |
| Fastener material | Stainless steel |
| Dimensions (overall) | L 600 x W 300 x H 250 cm / 290.39 kg |
| Charge resistance | 35 kg/m² |
| Wind resistance | 100 km/h |
| Maximum blade tilt | 90° |
| Number of blades | 38 |
| Crank number | 2 |
| Dimensions blinds (x4) | L 289 x H 236 cm / 33.29 kg |
| Usage | Manual |
| Fixing on pergola legs | 11 cm |
Package 1: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 2: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 3: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 4: L 289.5 x l 22.5 x h 17 cm – 37.3 kg
Package 5: L 255 x l 37 x h 23.5 cm – 47.84 kg
Package 6: L 336 x l 41 x h 17 cm – 65.6 kg
Package 7: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 8: L 302.5 x l 40 x h 19 cm – 67.8 kg
Package 9: L 298.5 x l 40 x h 19 cm – 63 kg
| Vertical poles section | 11.1 x 11.1 cm |
| Horizontal posts section | 14 x 7.5 cm |
| Aluminum thickness | 1.3 mm |
| Blade dimensions | 300 x 17.3 x 3 cm |
| Thickness blades | 0.8 mm |
