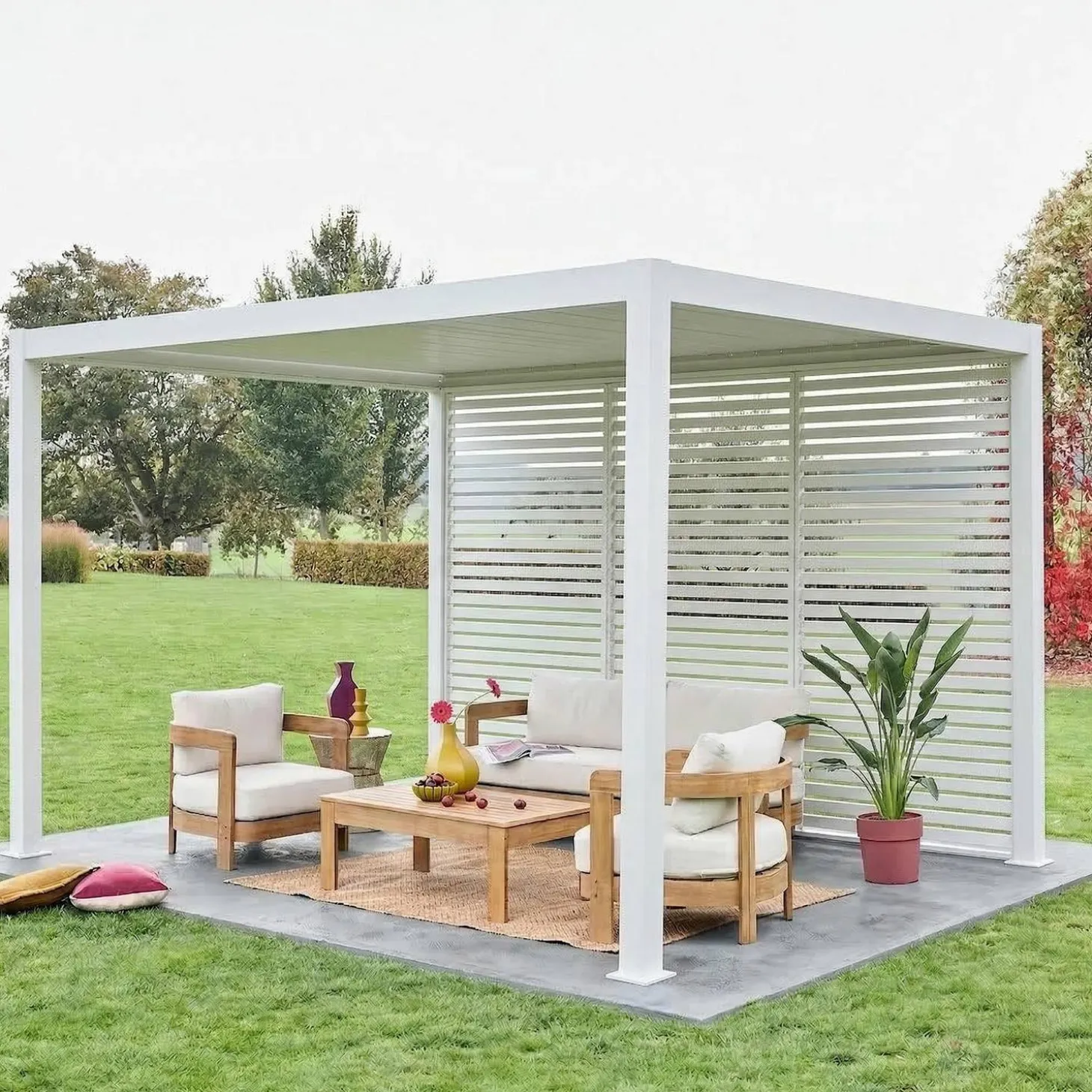

A pergola to enjoy your garden all year round
The Triomphe 3x4m louvered pergola lets you spend pleasant, convivial moments in your garden without worrying about the weather. Unlike other pergolas, it has the particularity of adapting to different weather conditions. In winter, it protects you from the rain or lets you enjoy the sunshine, while in summer, you can enjoy the shade and coolness. The pergola is fixed into the ground, so the system is permanent. No need to put your pergola away every autumn, you can enjoy it all year round.
With its light, elegant design, it adds a contemporary touch to your garden. Its dimensions mean you can easily install it on your terrace above a garden table or beside a swimming pool. It can also be used to house your spa.
A durable aluminium structure
Designed with a quality aluminium structure (frame + legs) with galvanised steel slats, this pergola is a long-term investment. Aluminium is an ideal material for outdoor use, as it doesn’t rust and is resistant to bad weather and UV rays. This pergola is therefore sturdy and requires very little maintenance, so it will be able to remain in your garden for many years to come!
Shade, sun, ventilation – the choice is yours!

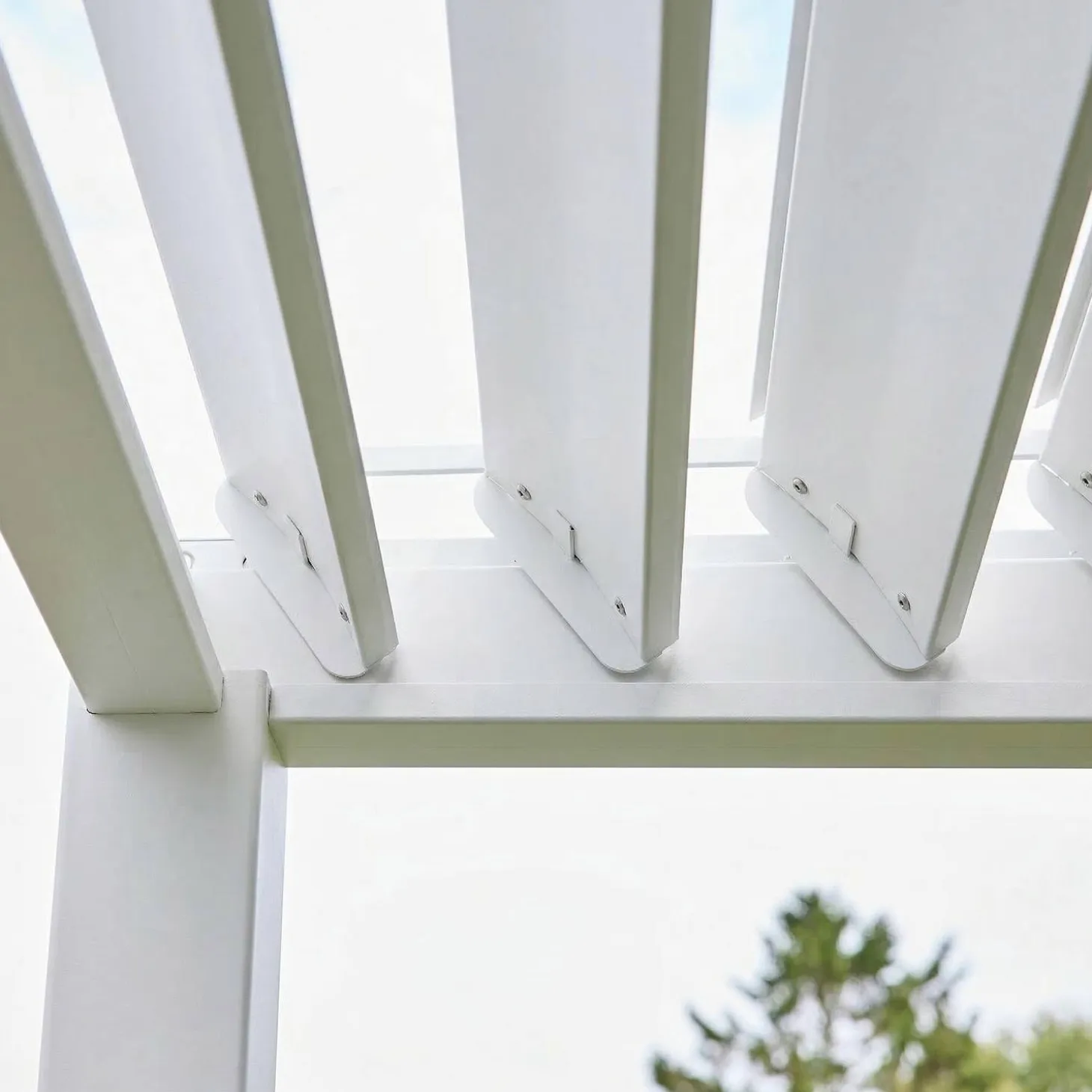

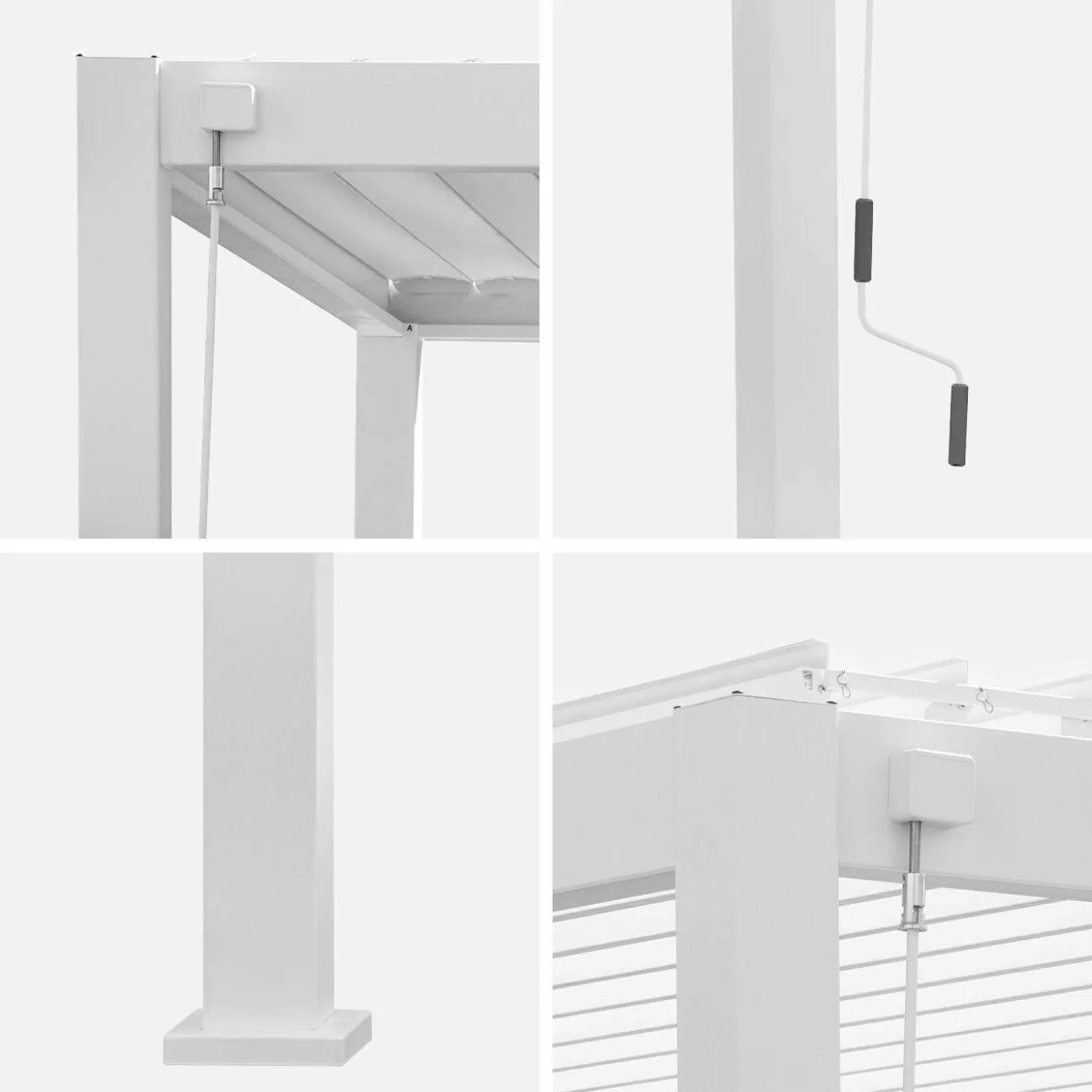

The awning can be opened and closed by means of tilting slats operated by a crank. Fully closed, it offers you total protection from the sun thanks to its insulating slats and maximum blackout. Water will be evacuated through the posts by an innovative integrated drainage system.
The adjustable slats allow you to enjoy natural, gentle ventilation while being protected from the sun’s rays. They also allow you to adjust the flow of sunlight. Partially open: you’ll get plenty of ventilation while containing direct sunlight. When fully open, you can enjoy the sun and optimum ventilation.

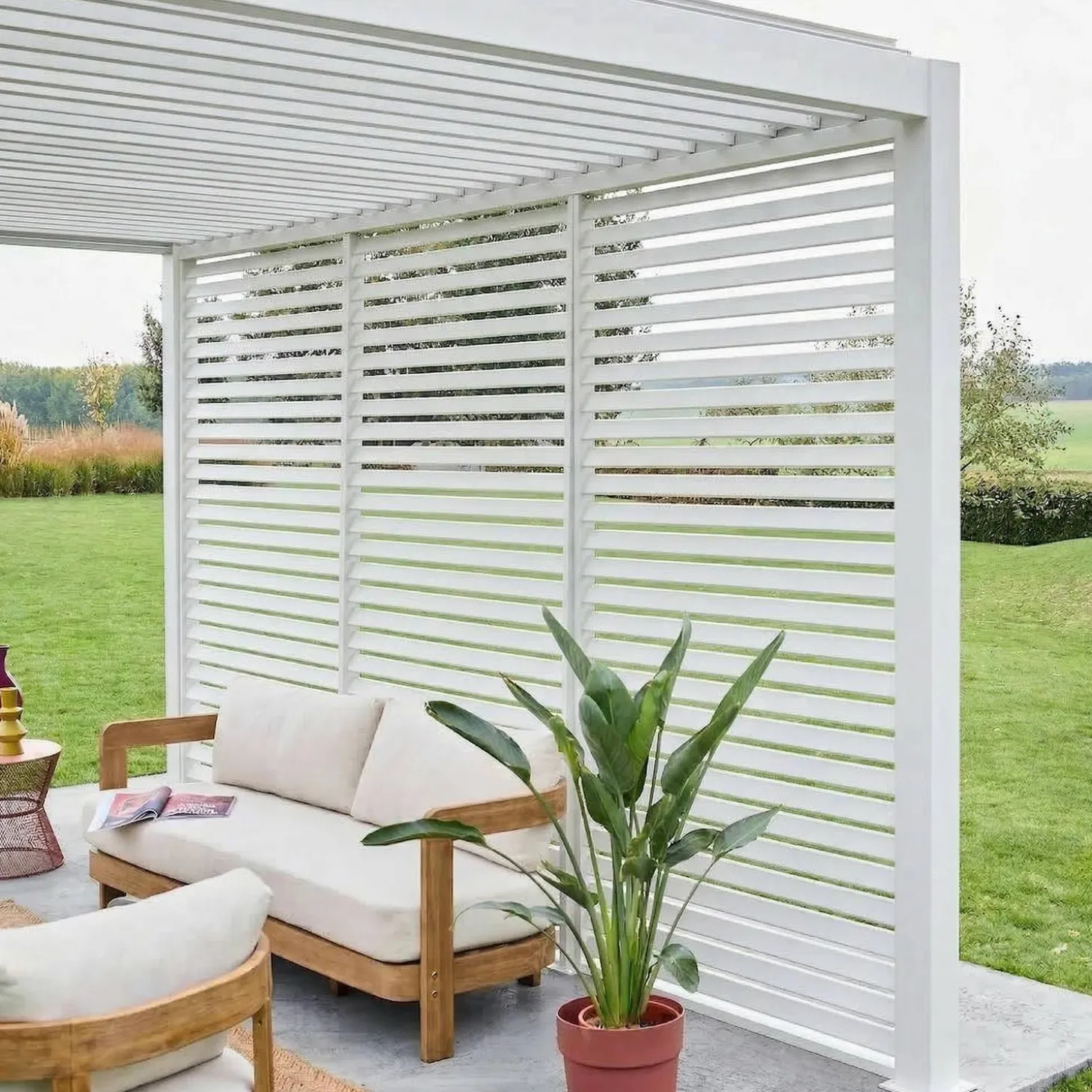

Louver panels for your bioclimatic pergola

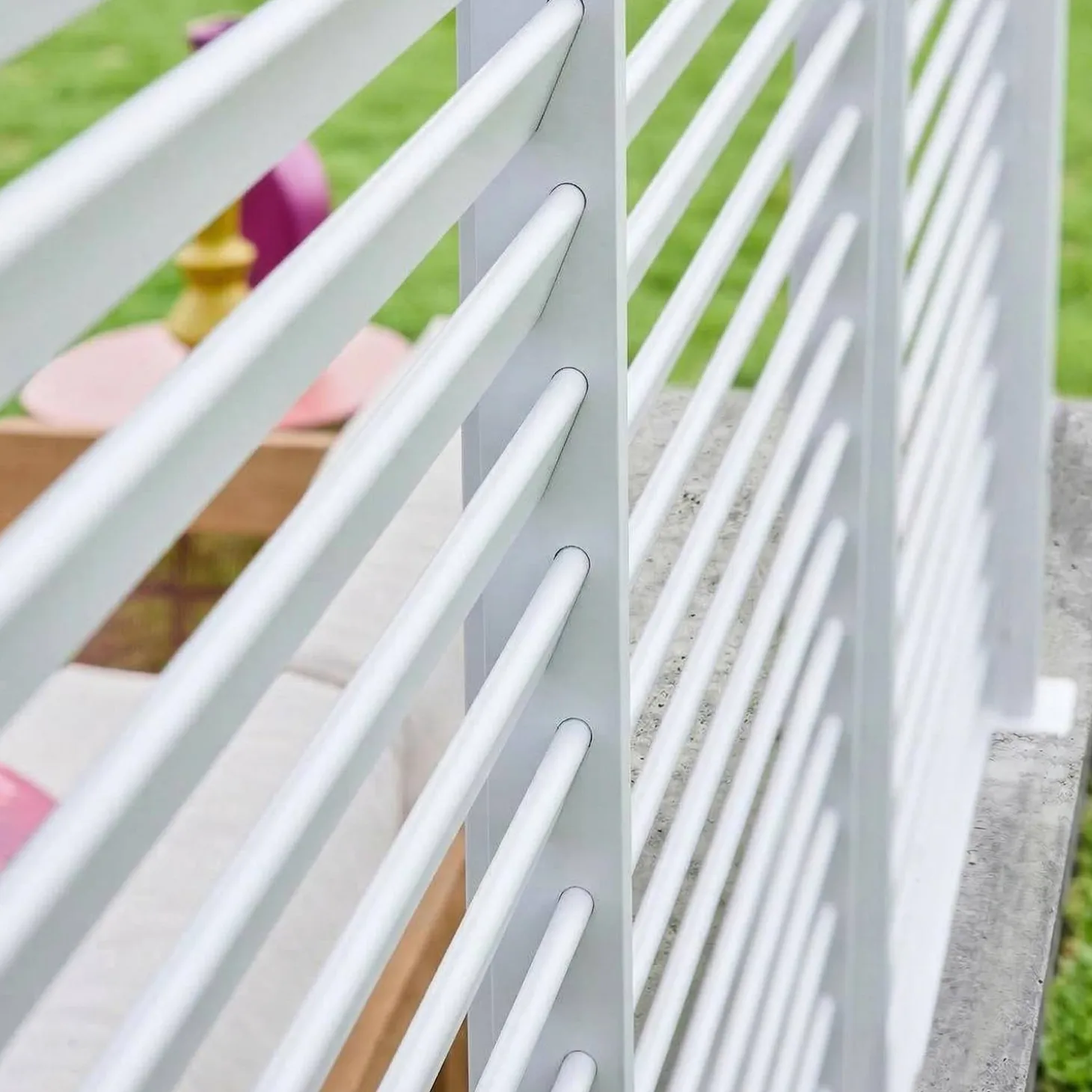

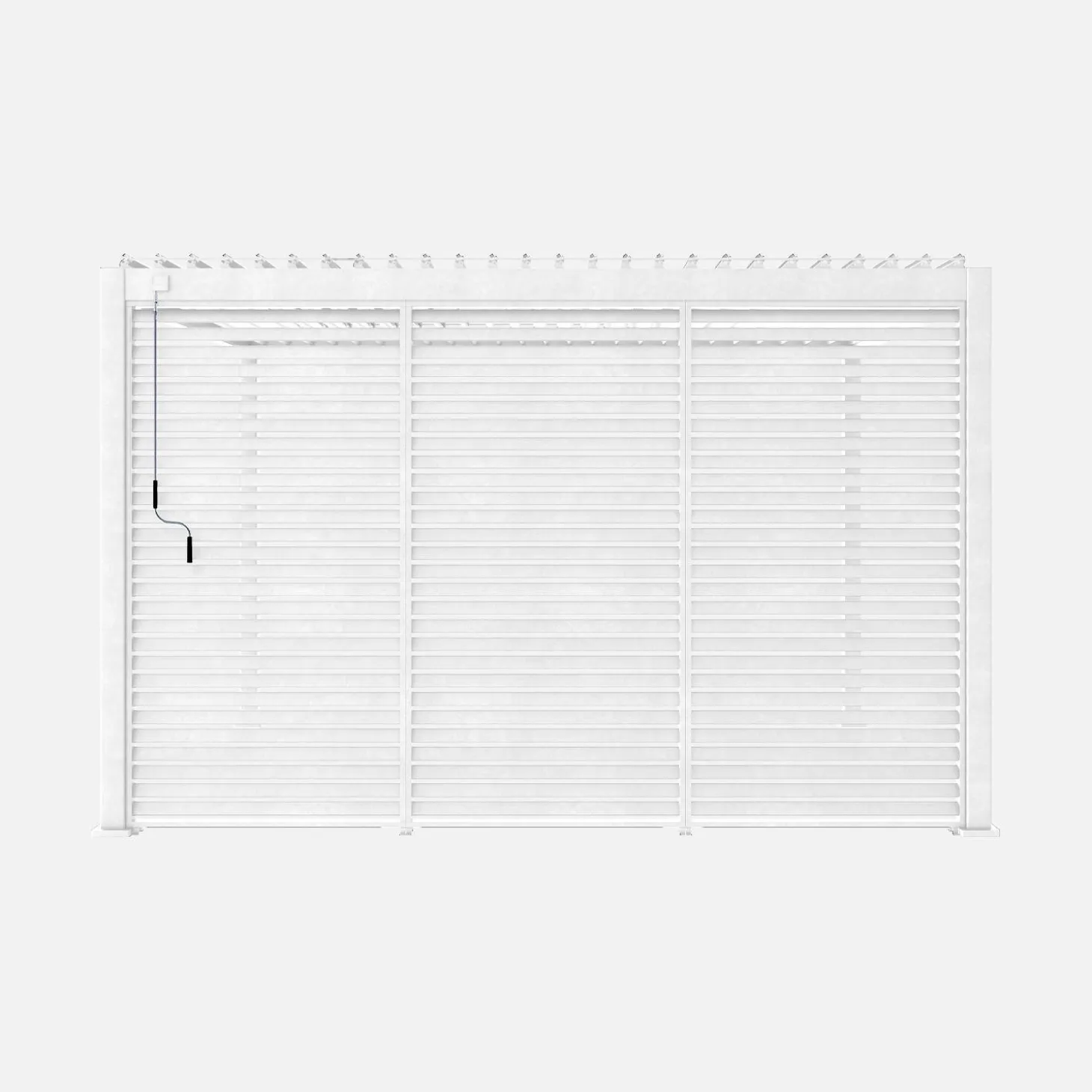

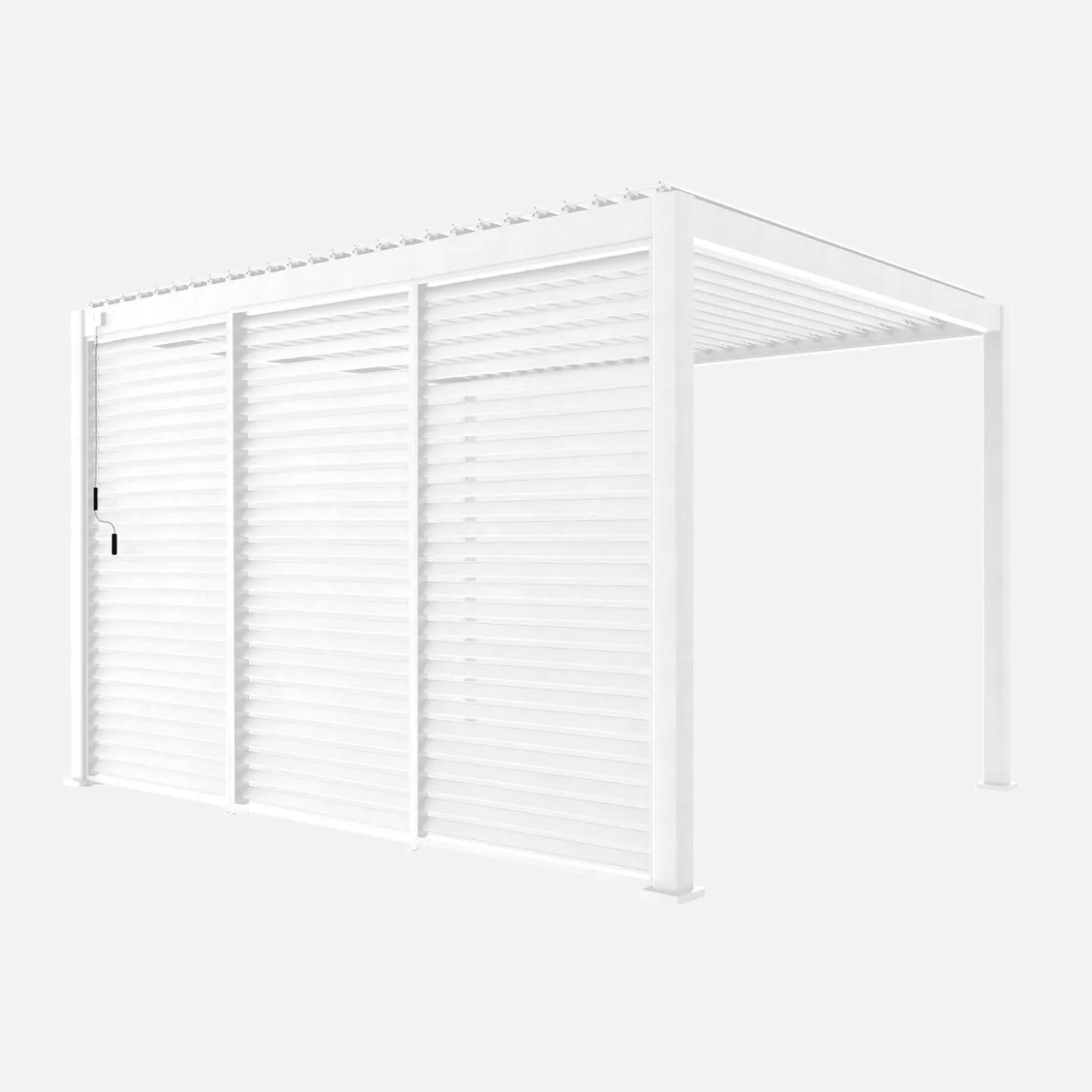

The 3 louvres supplied for the pergola protect you from the sun, side winds, light rain and prying eyes, while letting in the outside light. They consist of an openwork wall with 28 non-removable slats. Made from aluminium, the louvres are stylish and blend in perfectly with your pergola. Aluminium has many advantages: it’s a good long-term investment and is easy to maintain. The shutters can be positioned so that the 4m side is fully enclosed.
Additional information
Although it offers protection against the rain, this pergola is not a completely waterproof shelter.
This pergola is to be fixed on level ground.
These louvres fit on the 4m side of your pergola.
It is advisable to keep the pergola slats open in the event of snowfall.
Find our shutters for the 3m side on our site
Compare our louvered pergolas
Package 1: L 250 x l 33 x h 8.5 cm – 26 kg
Package 2: L 250 x l 33 x h 8.5 cm – 26 kg
Package 3: L 250 x l 33 x h 8.5 cm – 26 kg
Package 4: L 278 x l 26 x h 23.5 cm – 43.5 kg
Package 5: L 395 x l 28 x h 17 cm – 37.6 kg
Package 6: L 302.5 x l 40 x h 19 cm – 68.5 kg
Package 7: L 302.5 x l 40 x h 19 cm – 65 kg
Instruction manual
Total protection against the sun: enjoy its freshness in summer
Natural ventilation
Tilting slats to adjust the light flow
| Type | Louvered pergola |
| Motorised | No |
| Shape | Rectangular |
| Colour | White |
| Pantone code | 000C |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 4 m |
| Surface | 12 m² |
| Length | 3 m |
| Width | 4 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 10,35 m² |
| Floor area | 12 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,4 / 1,5 mm |
| Slat dimensions | L 294 x D 17 x H 3 cm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 25 |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 769,8 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 3 louver panels 130cm |
| Assembly time | 6h30 / 4 people |
| Number of packages | 7 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Slats | Galvanised steel |
| Screws and bolts | Stainless steel |
| Water drainage system | By drainage inside the posts |
| Quality of the aluminium structure | Rust-free, maintenance-free |
| Assembly | Easy |
| Roof and slats | Waterproof |
| Overall external dimensions | W 400 x D 300 x H 250 cm |
| Weight of the pergola | 154 kg |
| Louver panel size | 130 cm |
| Louver dimensions | W93 x D6 x H238cm |
Package 1: L 250 x l 33 x h 8.5 cm – 26 kg
Package 2: L 250 x l 33 x h 8.5 cm – 26 kg
Package 3: L 250 x l 33 x h 8.5 cm – 26 kg
Package 4: L 278 x l 26 x h 23.5 cm – 43.5 kg
Package 5: L 395 x l 28 x h 17 cm – 37.6 kg
Package 6: L 302.5 x l 40 x h 19 cm – 68.5 kg
Package 7: L 302.5 x l 40 x h 19 cm – 65 kg
Instruction manual
| Load resistance of the pergola | 35 kg/m |
| Wind resistance of the pergola | 100 km/h |
| Vertical column section | 11.1 x 11.1 cm |
| Horizontal column section | 14 x 7.5 cm |
| Aluminium thickness | 1.3 mm |
| Maximum blade inclination | 90° |
| Number of blades | 25 |
| Blade dimensions | 300 x 17.3 x 3 cm |
| Blade thickness | 0.8mm |
