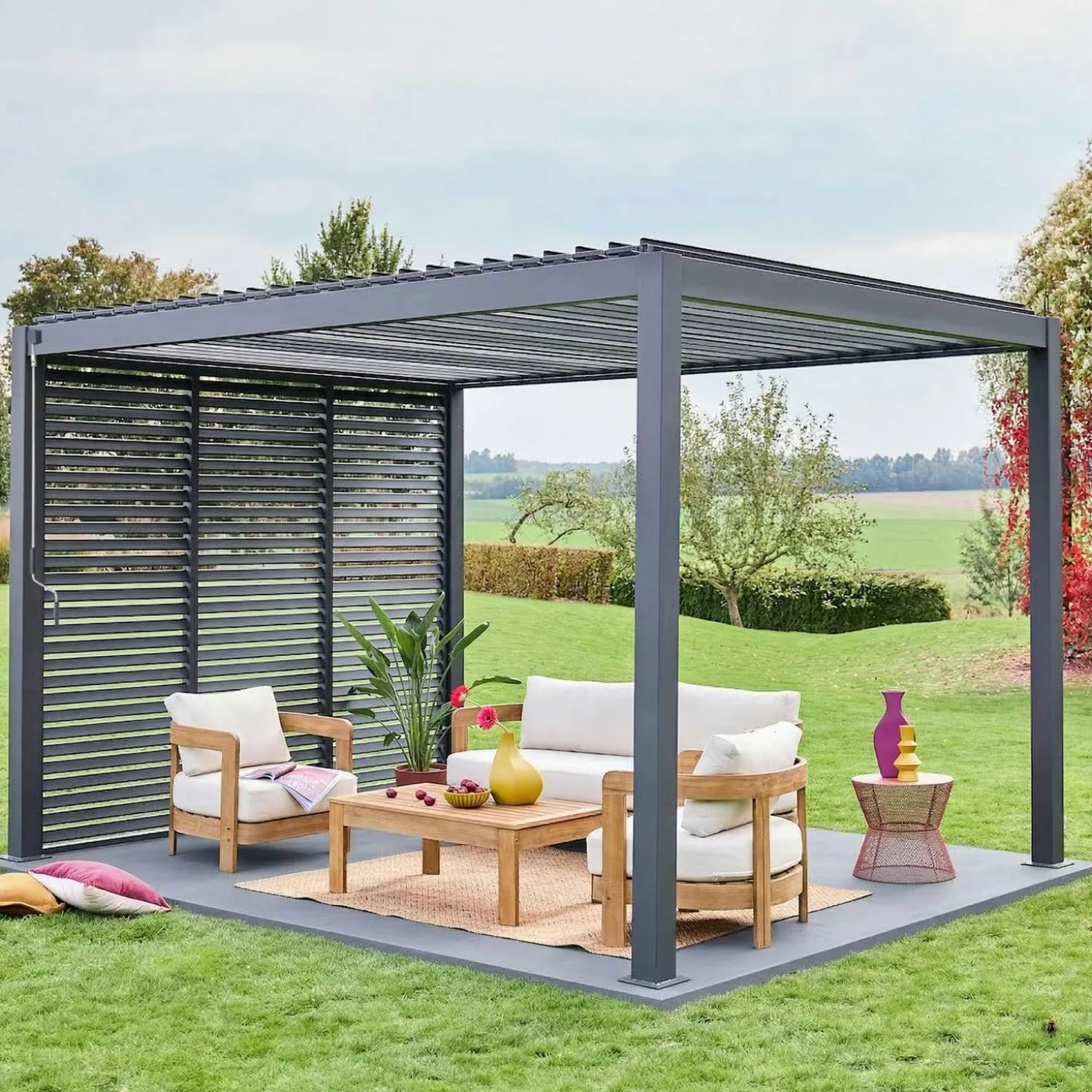

Pergola for Year-Round Enjoyment
The Triomphe 3x4m louvered pergola offers a delightful and sociable space in your garden, allowing you to enjoy moments without concern for the weather. Unlike other pergolas, it adapts to various weather conditions. In winter, it provides protection from rain or allows you to bask in the sun, while in summer, it offers shade and coolness. With a ground-fixed installation, this system is permanent, eliminating the need to store it away each autumn 鈥
With its lightweight and elegant design, it adds a contemporary touch to your garden. Its dimensions make it easy to install on your terrace, above a garden table, by the pool, or even to shelter your spa.
Durable Aluminium Structure
Crafted with a high-quality aluminium structure (frame + legs) and galvanized steel blades, this pergola is a long-term investment. Aluminium is an ideal outdoor material, resistant to rust, weather conditions, and UV rays. Robust and requiring minimal maintenance, this pergola will grace your garden for many years.
Shade, Sun, Ventilation 鈥

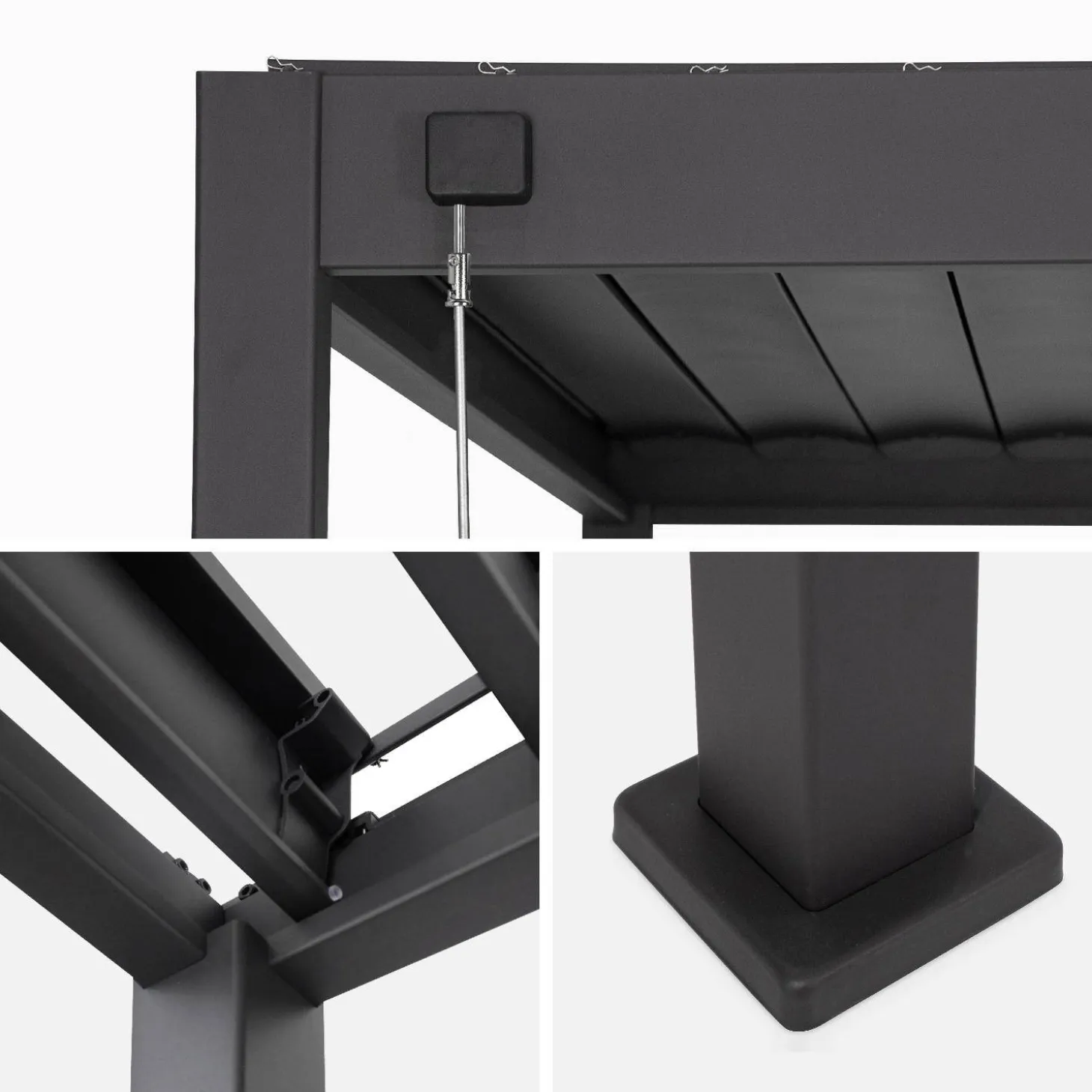

The awning can open and close with adjustable slats operated by a crank. When fully closed, it provides total protection against the sun, thanks to insulating blades and maximum shading. The innovative integrated drainage system evacuates water through the posts. The adjustable slats allow for natural ventilation while providing protection from direct sunlight. They also enable you to control the sunlight’s flow. In partial opening, you achieve significant ventilation while containing direct sunlight. In full opening, you can enjoy the sun and optimal ventilation.

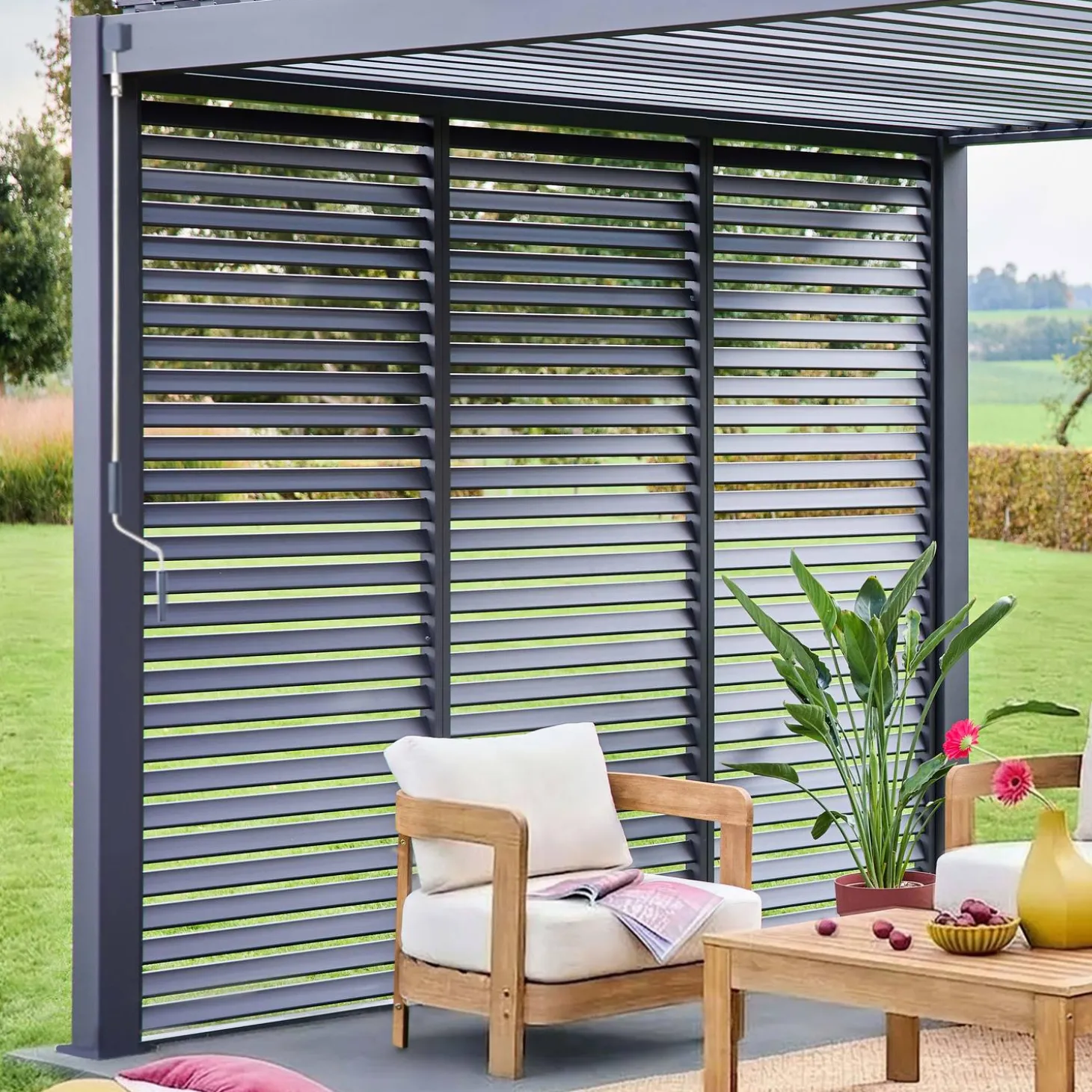

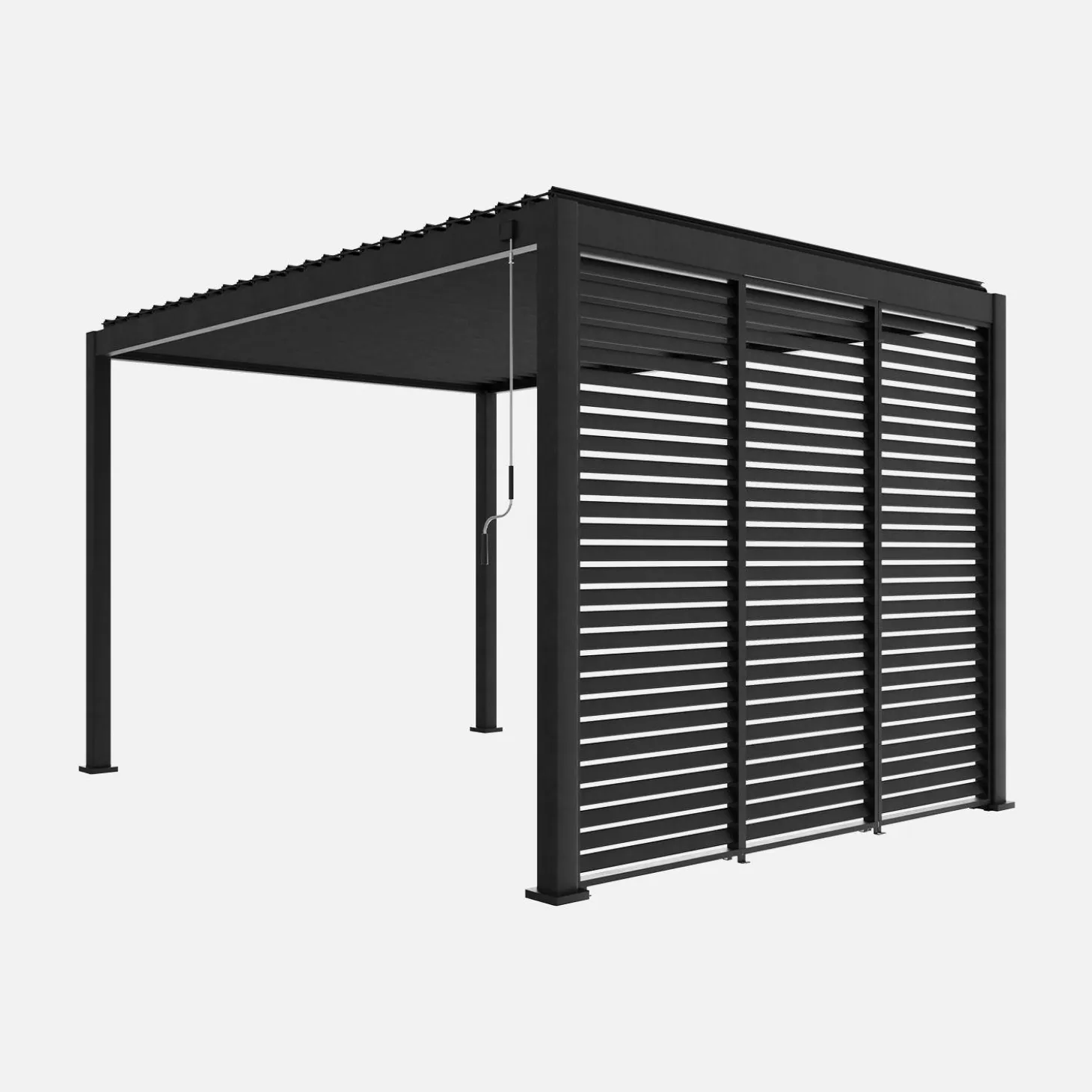

Louver panels for Customising Your Bioclimatic Pergola

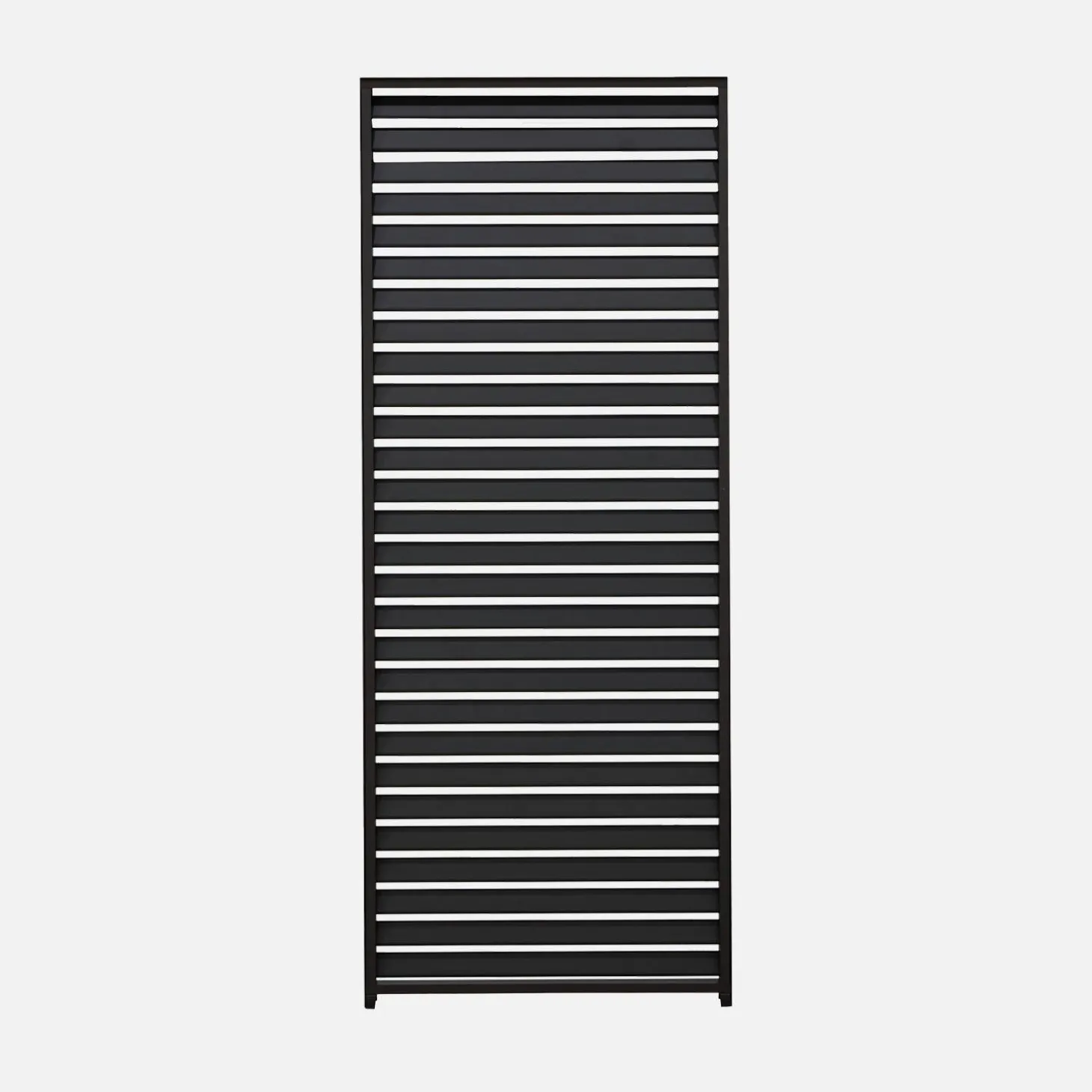

The three spanels provided for the pergola protect you from the sun, side winds, light rain, and prying eyes while allowing exterior light to filter through. Comprising a perforated wall of 28 non-removable slats, these louvers are made of aluminium, offering a stylish and seamless integration with your pergola. Aluminium’s numerous advantages make it a wise long-term investment, and it is easy to maintain. The louvers can be positioned to entirely close the 3m side of the pergola.
Additional information:
Although it offers protection against the rain, this pergola is not a completely waterproof shelter.
This pergola should be fixed on level ground.
These louvers are placed on the 3m side of your pergola.
It is advisable to keep the slats open in case of snowfall.
You can find shutters for the 4m side in our catalogue.
Your pergola is guaranteed for 2 years + 3 years free from the date of delivery. Shutters are not included in the extended warranty and are guaranteed for 2 years. You can find the conditions of this guarantee in our legal notice.
Compare our louvered pergolas
Package 1: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 2: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 3: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 4: L 278 x l 26 x h 23.5 cm – 43.5 kg
Package 5: L 395 x l 28 x h 17 cm – 37.6 kg
Package 6: L 302.5 x l 40 x h 19 cm – 68.5 kg
Package 7: L 302.5 x l 40 x h 19 cm – 65 kg
Instruction manual
Total protection against the sun: enjoy its freshness in summer
Natural ventilation

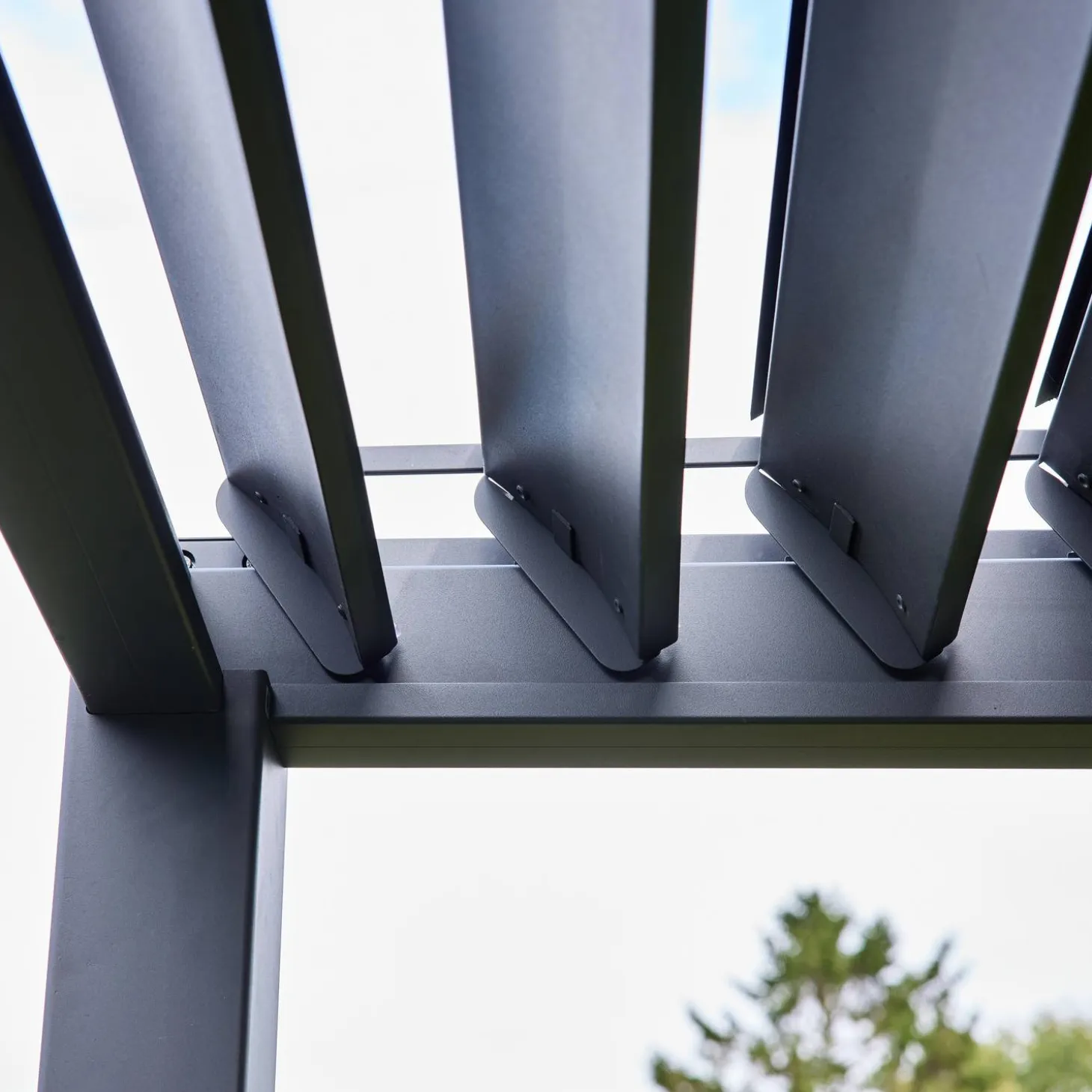

Tilting slats to adjust the light flow
| Type | Louvered pergola |
| Motorised | No |
| Shape | Rectangular |
| Colour | Anthracite |
| Pantone code | 19-0201 |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 4 m |
| Surface | 12 m² |
| Length | 3 m |
| Width | 4 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 10,35 m² |
| Floor area | 12 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,4 / 1,5 mm |
| Slat dimensions | L 294 x D 17 x H 3 cm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 25 |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 769,8 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | 3 louver panels 100cm |
| Assembly time | 4h30 / 4 people |
| Number of packages | 7 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
Package 1: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 2: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 3: L 236 x l 33 x h 8.5 cm – 20.15 kg
Package 4: L 278 x l 26 x h 23.5 cm – 43.5 kg
Package 5: L 395 x l 28 x h 17 cm – 37.6 kg
Package 6: L 302.5 x l 40 x h 19 cm – 68.5 kg
Package 7: L 302.5 x l 40 x h 19 cm – 65 kg
Instruction manual
