Shade and comfort for your outdoor space
This Palace pergola instantly creates a living space where it’s pleasant to gather, like a small protected haven in your garden. Its robust aluminum and steel structure effortlessly withstands sunny days as well as more unpredictable evenings, while its adjustable roof slats can be set with a simple crank to provide just the right amount of light, shade, or privacy. Installed near a pool or to shelter your garden furniture, it becomes a true extension of your home, a place to share a meal, read quietly, or simply enjoy the fresh air. Resistant, designed to last, and rust-proof, it accompanies you season after season to transform your outdoors into a welcoming and elegant refuge.

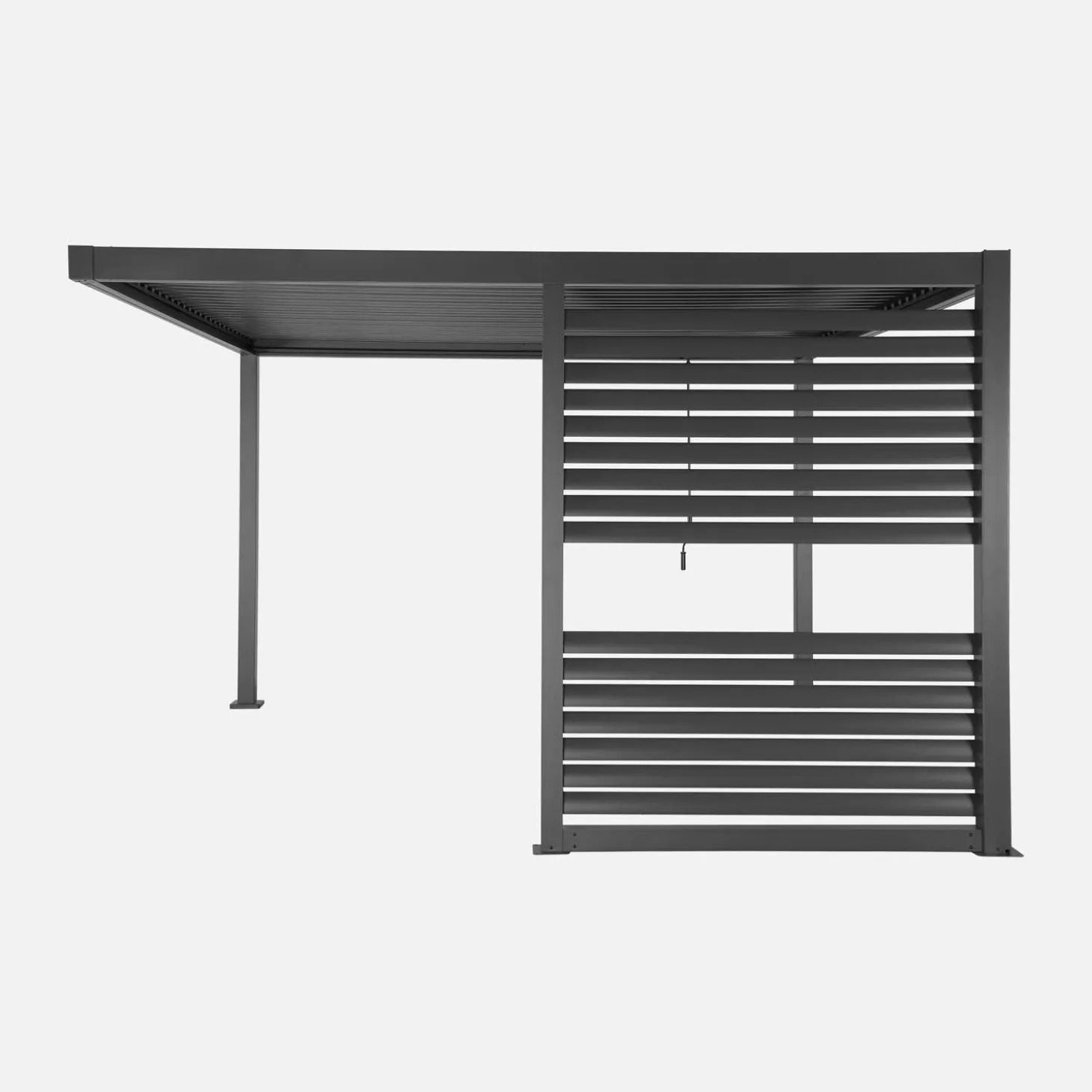

An integrated louver panel
The pergola features an integrated aluminum louver panel, which helps define the space while offering some privacy. It filters the sun, protects from prying eyes, and creates a pleasant atmosphere so that every moment outside is comfortable.
Additional Information:
Although it offers protection against rain, this pergola is not a completely waterproof shelter.
This pergola should be mounted on a level surface.
For transport, some parts of the structure are stored in the legs.
It is recommended to keep the slats open in case of snowfall.
Pergola not compatible with accessories from the Triomphe range.
Compare our bioclimatic pergolas
Package 1: L 234 x l 35 x h 20.5 cm – 34.7 kg
Package 2: L 348.5 x l 34 x h 15 cm – 37.6 kg
Package 3: L 348.5 x l 22 x h 21 cm – 57.4 kg
Package 4: L 348.5 x l 22 x h 21 cm – 57.4 kg
Instruction manual
Complete sun protection: enjoy its coolness in summer
Natural ventilation
Adjustable slats to control light flow
| Type | Louvered pergola |
| Motorised | No |
| Shape | Square |
| Colour | Anthracite |
| Warranty period | 2 years |
| Size | 3,5 x 3,5 m |
| Surface | 12,2 m² |
| Length | 350 cm |
| Width | 350 cm |
| Height to ridge | 2,30 m |
| Entrance height | 2,11 m |
| Height with closed slats | 2,23 m |
| Interior floor area | 10,9 m² |
| Aluminium thickness | 1,3 / 1,5 mm |
| Slat dimensions | 14 x 340 x 2,3 cm |
| Slat orientation | 0 to 88 degrees |
| Number of slats | 28 |
| Weight | 169,8 kg |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Post material | Steel |
| Base material | Steel |
| Screw material | Galvanised steel |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit included) |
| Crank handle | Yes |
| Wind resistance | 72 km/h |
| Load resistance | 50 kg/m² |
| Maximum permissible roof load | 500 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Yes |
| Accessories Included | No |
| Assembly time | 2h / 4 people |
| Assembly | The product is very easy to assemble, instructions supplied |
| Number of packages | 4 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Palace |
| Overall external dimensions | 50 x 350 x 230 cm |
| Louver panel dimensions | W 175 x H 211 cm |
Package 1: L 234 x l 35 x h 20.5 cm – 34.7 kg
Package 2: L 348.5 x l 34 x h 15 cm – 37.6 kg
Package 3: L 348.5 x l 22 x h 21 cm – 57.4 kg
Package 4: L 348.5 x l 22 x h 21 cm – 57.4 kg
Instruction manual
