Elegant shading in your garden

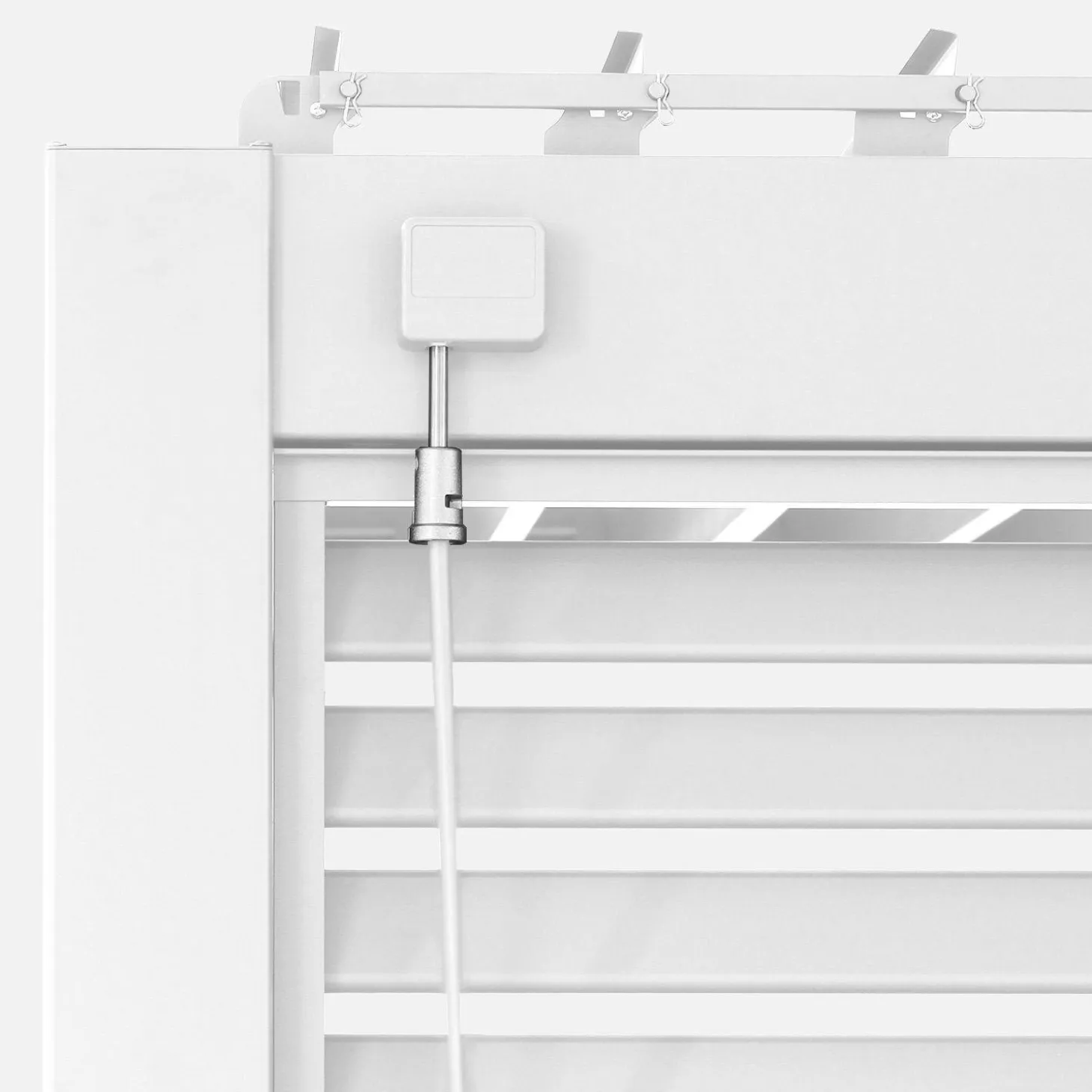

The Triomphe 3 x 4 m wall-mounted lean to pergola with louvered roof slats is an elegant and durable solution for enjoying your garden all year round. Attached to the wall and the ground, it adapts to weather conditions: protection against rain and cold in winter, shade and coolness in summer, while adding a contemporary touch that integrates perfectly with a terrace. Its robust aluminum structure, combined with galvanized steel slats, ensures excellent resistance to weather and UV rays while requiring very little maintenance. Its adjustable slats, controlled by a crank, allow you to manage shade, sun, and ventilation, while its integrated drainage system efficiently evacuates rainwater.
Louvers to equip your bioclimatic pergola

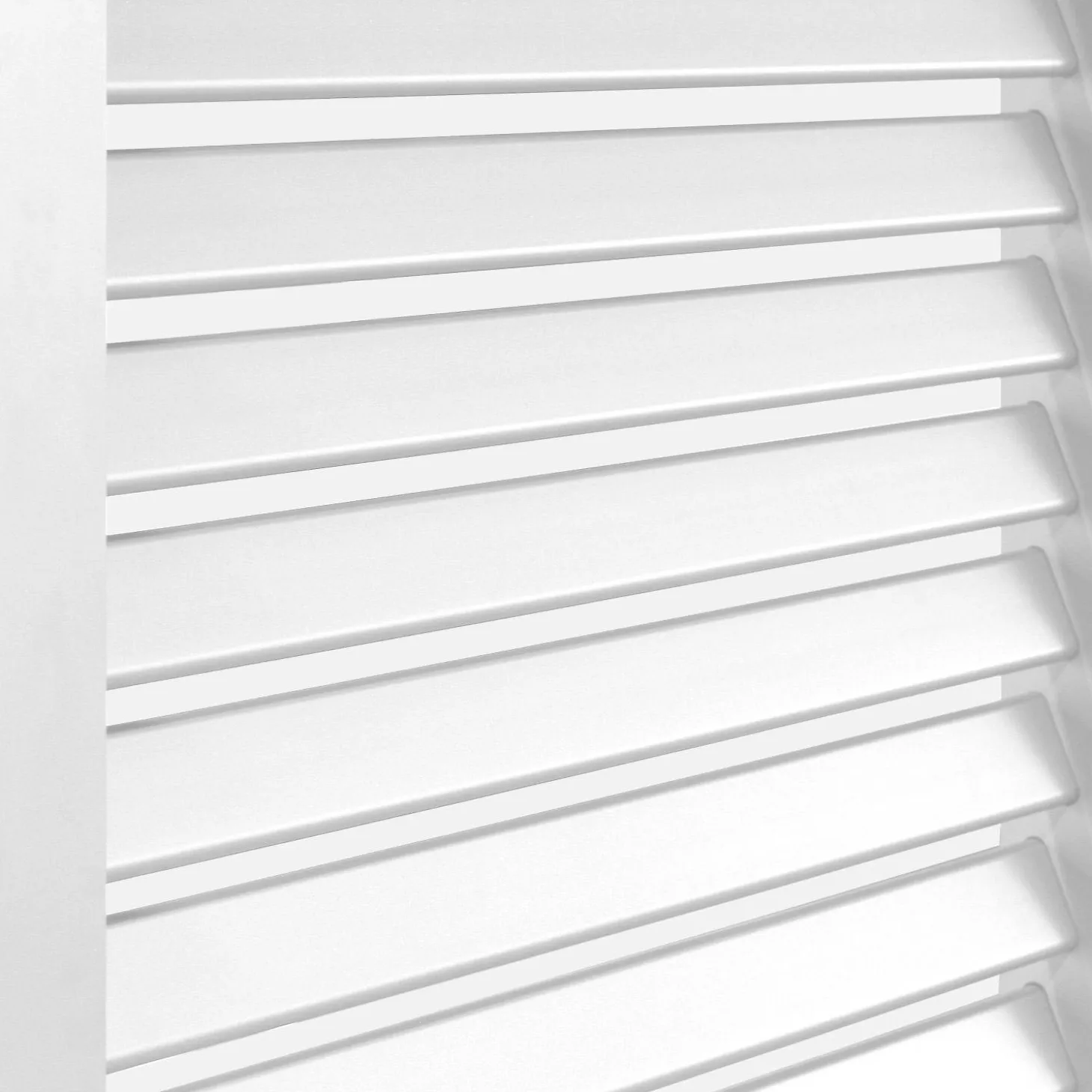

The 3 provided louverpanels protect you from the sun, wind, light rain, and prying eyes while allowing outside light to pass through. They consist of a perforated wall with 28 fixed and non-removable slats. Designed in aluminum, the louvers are stylish and blend perfectly with your pergola. Aluminum has many advantages; it is a good long-term investment and easy to maintain.
Additional information:
Although it offers protection against rain, this pergola is not a completely waterproof shelter.
Your pergola is guaranteed for 2 years + 3 additional years from the date of delivery.
The louvers are not included in the warranty extension and are guaranteed for 2 years. You can find the conditions of this warranty in our legal notices.
This pergola is to be installed with a level roof.
It is recommended to keep the slats open in case of snowfall.
The louver panels can only be installed opposite the facade on the 4m side. No accessories can be installed on the 3m sides.
Package 1: L 250 x l 33 x h 8.5 cm – 26 kg
Package 2: L 250 x l 33 x h 8.5 cm – 26 kg
Package 3: L 250 x l 33 x h 8.5 cm – 26 kg
Package 4: L 288 x l 26 x h 12.5 cm – 25.8 kg
Package 5: L 395 x l 28 x h 17 cm – 43.1 kg
Package 6: L 299 x l 40 x h 19 cm – 68.7 kg
Package 7: L 302 x l 40 x h 19 cm – 64 kg
Sun protection: enjoy its coolness in summer
Natural ventilation
Adjustable slats to control light flow
| Type | Lean to |
| Motorised | No |
| Colour | White |
| Warranty period | 2 years + 3 years free! (Excluding accessories) |
| Size | 3 x 4 m |
| Surface | 12 m² |
| Length | 3 m |
| Width | 4 m |
| Interior floor area | 10,35 m² |
| Aluminium thickness | 1,4 / 1,5 mm |
| Slat orientation | 0 to 90 degrees |
| Number of slats | 25 |
| Weight | 177,6 kg |
| Material | Aluminium |
| Frame material | Aluminium |
| Slat material | Galvanised steel |
| Screw material | Stainless steel |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 1195,2 kg |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |

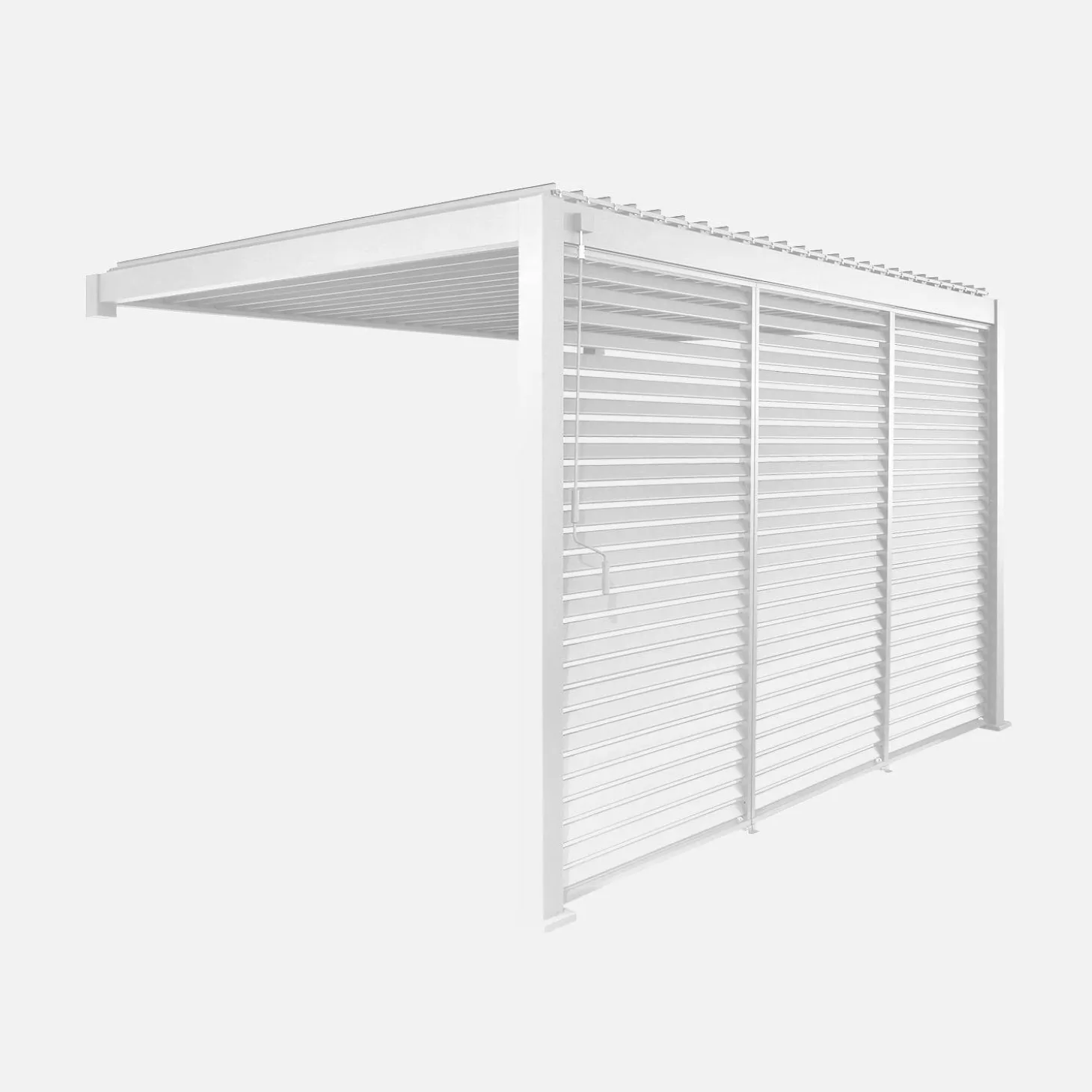

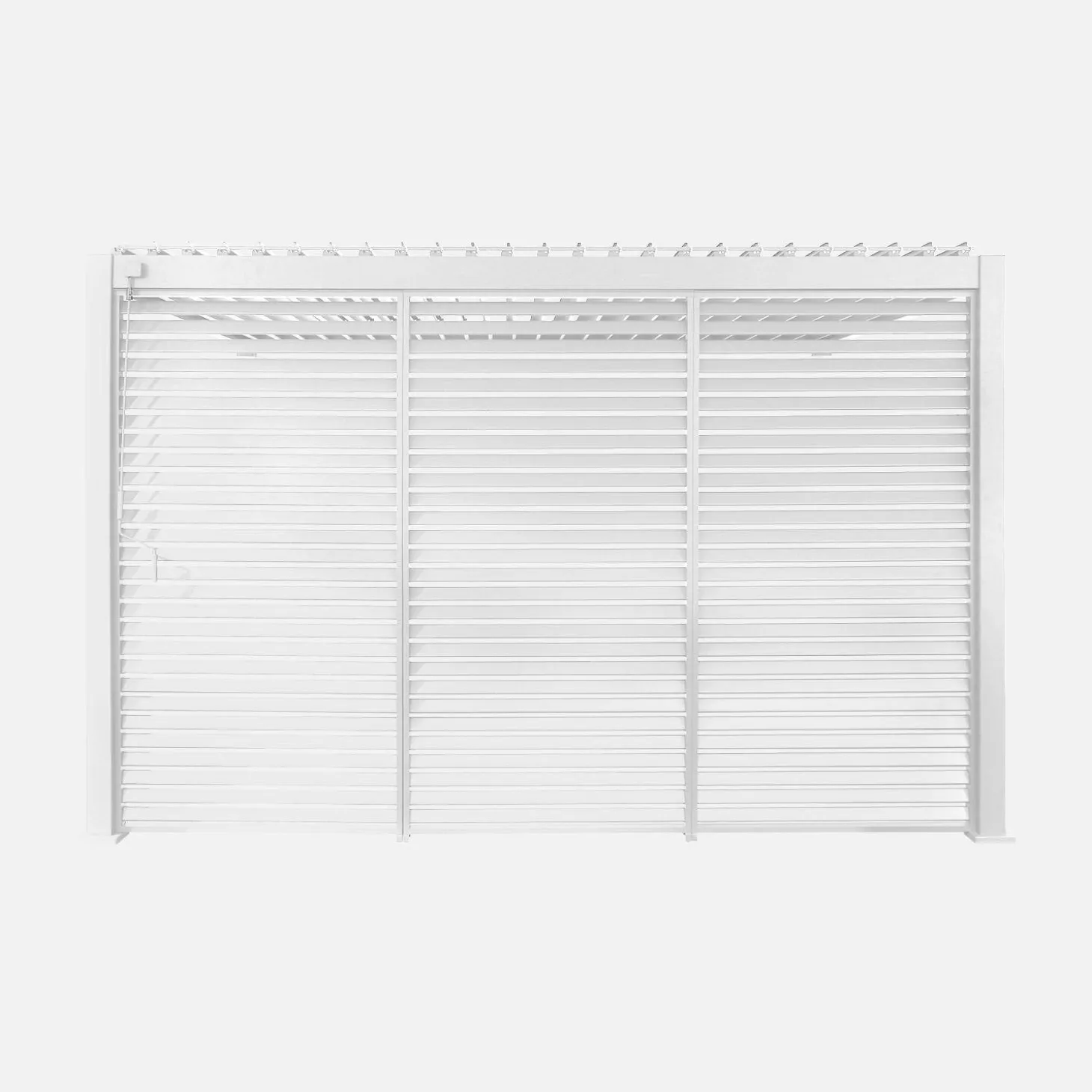

| Accessories Included | 3 louver panels 130cm |
| Assembly time | 4h / 4 people |
| Number of packages | 5 |
| Use | Outdoor |
| Use | Domestic use only |
| Range | Triomphe |
| Wind resistance | Class 6: 20.7m/s |
| Outer dimensions | W 392 x D 301 x H 250 cm |
| Interior dimensions | L 370.50 x W 290 x H 236.55 cm |
| Roof dimensions | W 392 x D 301 cm |
| Height | Roof: 257 cm / Under the roof: 236.5 cm |
| Post dimensions | L 11.1 x W 11.1 x H 250 cm |
| Slat dimensions | L 294 x W 17 x H 3 cm |
| Shutter dimensions | W 123.5 x H 236 cm / 22 kg |
Package 1: L 250 x l 33 x h 8.5 cm – 26 kg
Package 2: L 250 x l 33 x h 8.5 cm – 26 kg
Package 3: L 250 x l 33 x h 8.5 cm – 26 kg
Package 4: L 288 x l 26 x h 12.5 cm – 25.8 kg
Package 5: L 395 x l 28 x h 17 cm – 43.1 kg
Package 6: L 299 x l 40 x h 19 cm – 68.7 kg
Package 7: L 302 x l 40 x h 19 cm – 64 kg
